What factors matter when picking a PVC pipe conical twin screw barrel

Selecting the right PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel influences both machine performance and product quality. The Extruders Conical Twin Screw Barrel provides high torque output and precise temperature control, supporting efficient extrusion. Conical twin screw extruder PVC models use wear-resistant alloy steel and offer strong self-cleaning ability, reducing downtime. The Extruder Conical Twin Screw Extruder Barrel ensures uniform mixing and stable operation, extending equipment lifespan.

Material Compatibility for PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel

Importance of Barrel Materials for PVC

Choosing the right barrel material for a PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel is essential for both product quality and machine durability. PVC compounds often contain additives and reactive agents that can chemically attack the barrel’s inner wall. If the barrel material is not compatible, this can lead to rapid wear, corrosion, and even unexpected machine downtime.

• PVC and flame-retardant materials require corrosion-resistant coatings, such as nickel or chrome plating, to prevent corrosive wear.
• Incompatible barrel materials or coatings can cause accelerated wear, leading to inconsistent melt flow and poor surface finish.
• Mismatched screw and barrel materials may result in inefficient melting and mixing, excessive wear, and shortened component lifespan.
• Selecting wear- or corrosion-resistant materials tailored to the resin type helps maintain consistent melting, preserves part dimensions, and extends screw and barrel life.

High processing temperatures and pressures, combined with moisture and gases, can speed up wear and corrosion if the barrel material is not suitable. Advanced materials like powder metallurgy steel offer superior corrosion resistance and mechanical strength, which significantly extend the service life of both the barrel and the screw. By selecting the right materials based on the resin type and processing conditions, manufacturers can reduce unplanned downtime and improve the quality of PVC pipes and profiles.

Tip: Always match the barrel material to the specific PVC compound and processing environment to maximize equipment lifespan and ensure consistent product quality.

Role of Surface Coatings and Treatments

Surface coatings and treatments play a vital role in protecting the PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel from the harsh conditions of PVC processing. Corrosion and abrasive wear are the main causes of barrel degradation. Coatings and treatments enhance abrasion resistance, corrosion resistance, and surface hardness, while also reducing friction.

Laser cladding with nickel-based alloys reinforced with tungsten carbide particles creates thick, hard, and defect-free coatings. These coatings are tailored to resist both abrasive wear and corrosion, which are common in PVC processing barrels. Bimetallic coatings, such as nickel-cobalt alloys with chromium carbides, provide superior corrosion and wear resistance. Traditional surface hardening methods like nitriding protect against wear but may not be enough for corrosion. Laser cladding allows for compositional gradients along the barrel length, addressing different wear and corrosion mechanisms.

• Wear types affecting barrels include adhesive, abrasive, and corrosive wear, with corrosive wear being especially common in PVC processing.
• Material selection is critical: different alloys offer varying resistance levels, and materials designed for corrosive resins improve barrel durability.
• Optimizing the barrel surface finish, such as achieving a smooth and defect-free surface, reduces friction and wear, helping resist PVC-related corrosion and wear.

By using advanced coatings and treatments, manufacturers can significantly extend the lifespan and performance of the PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel, even in the most demanding environments.

Screw and Barrel Design in PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel

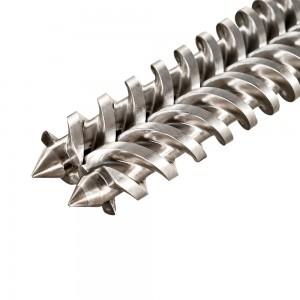

Conical Geometry and Its Benefits

Conical geometry stands out as a defining feature in twin screw barrels for PVC extrusion. The tapered design gradually reduces the screw diameter from the feed zone to the discharge zone. This shape brings several advantages to the extrusion process:

• High mixing efficiency results from increased shear and agitation, which ensures uniform distribution of additives.
• Adaptability to different material viscosities and process requirements supports a wide range of PVC and PE products.
• Optimized temperature control allows for uniform heating and cooling, improving product quality and reducing defects.
• Reduced energy consumption comes from the efficient flow and optimized screw geometry.
• Extended equipment life is achieved by minimizing wear and failure rates.
• Enhanced mixing and melting capabilities lead to stable performance and consistent output quality.
• Increased production capacity is possible due to faster processing times and smooth material flow.
• Long-term durability minimizes maintenance needs and downtime.
• Efficient mixing capability through material rubbing and cutting inside the barrel enhances product quality.
• Self-cleaning action reduces residual buildup and cleaning time.

Note: The conical twin screw barrel design supports high output and reliable operation, making it ideal for PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel applications.

L/D Ratio and Compression Ratio for PVC Pipe

The length-to-diameter (L/D) ratio and compression ratio are critical parameters in screw and barrel design. These factors directly influence the plasticizing and conveying efficiency of the extruder.

A proper L/D ratio balances compression and plasticizing effects, ensuring efficient melting and mixing of PVC. The compression ratio, combined with screw diameter variation, controls shear and energy input. Lower diameter in the metering section results in lower shear rates, which decreases temperature rise and material stress. This process enhances mechanical properties and overall pipe quality. The compression zone also acts as a seal to prevent powder backflow, ensuring consistent fusion and extrusion conditions.

Tip: Adjust screw parameters based on product requirements to achieve optimal plasticization and output quality for PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel.

Impact on Melting and Mixing Quality

Screw and barrel design directly affects the melting, homogenization, and conveying of PVC compounds. Important design elements include L/D ratio, compression ratio, and screw geometry. Customized screw profiles, such as barrier screws and mixing elements, improve melt uniformity and color dispersion.

• Multi-stage screw designs divide the screw into zones for melting, mixing, and gas removal, improving material feed consistency and reducing defects.
• Barrier screws separate solid and molten material, enhancing melting consistency and lowering energy consumption.
• Proper screw geometry and compression ratios ensure smooth conveying, uniform melting, and steady material flow, directly impacting melt homogeneity.
• Barrel venting systems remove air, moisture, and volatiles, preventing feed blockages and improving final pipe quality.
• Precise temperature control within the barrel prevents material degradation and ensures consistent melt quality.

The clearance between the screw and barrel is critical for melting quality. Excessive clearance increases backflow and friction, causing overheating and polymer degradation. Screw head geometry influences material flow into the die, affecting thermal decomposition risks. Advanced screw designs with multi-channel configurations significantly improve mixing and homogenization in PVC pipe extrusion.

Callout: Regular maintenance and monitoring of screw and barrel wear are essential to maintain these benefits and ensure consistent product quality.

The conical twin screw barrel design, when paired with the right L/D ratio and compression ratio, delivers superior melting and mixing quality. This approach supports high output, uniform color, and enhanced mechanical properties in PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel production.

Wear and Corrosion Resistance in PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel

Bimetallic vs. Nitrided Barrels

Choosing the right barrel type is crucial for long-lasting performance in PVC extrusion. Nitrided barrels offer high surface hardness and good fatigue resistance. However, they do not resist corrosion well, especially when exposed to the hydrochloric acid released during PVC processing. Bimetallic barrels, on the other hand, feature a thick inner liner made from special alloys. This liner provides excellent wear and corrosion resistance, making bimetallic barrels a better choice for harsh environments.

Bimetallic barrels can last up to five times longer than nitrided barrels when processing PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel. They also reduce downtime and maintenance costs, while supporting higher production output.

Handling PVC’s Corrosive Nature

PVC releases hydrochloric acid during extrusion, which aggressively attacks standard steel barrels and screws. This acid can quickly damage nitrided steel, tool steel, and even some alloy steels. To protect equipment, manufacturers use bimetallic barrel linings with nickel-rich alloys or special surface coatings. These materials resist both abrasion and chemical attack.

Operators should also follow best practices to extend equipment life:

• Inspect and clean cooling water pipes to prevent scale buildup and corrosion.
• Use magnetic filters at the material inlet to keep metal debris out of the barrel.
• Apply anti-rust grease to screws and shafts during long shutdowns.
• Store small screws properly to avoid bending or damage.
• Clean residual material from the barrel and machine head with care.

Regular maintenance and careful control of screw-barrel clearance help prevent rapid wear and corrosion. These steps ensure reliable operation and consistent product quality.

Machine and Application Fit for PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel

Matching Barrel Specs to Extruder Model

Selecting the correct barrel specifications for each extruder model ensures smooth operation and high-quality output. Engineers must align barrel zones with screw sections, such as solids conveying, melting, and metering. They set each zone’s temperature based on the resin’s melting or glass transition point, then adjust upward for optimal melting and flow. This careful zoning helps maintain uniform polymer melting and reduces defects.

1. Identify barrel zones that match screw sections.
2. Set the solids conveying zone temperature to the resin’s melting or glass transition temperature plus 50°C.
3. Increase the melting zone temperature by 30–50°C above the solids conveying zone.
4. Adjust the metering zone to match the discharge temperature.
5. Fine-tune temperatures for best melting quality and minimal defects.
6. Consider screw design, wear, and cooling effects.
7. Gradually increase temperature through zones for stable output.

If barrel specs do not match the extruder model, problems can occur. Uneven wear, mechanical stress, and thermal expansion may lead to barrel warping or screw breakage. Poor alignment can also cause blockages, increased wear, and reduced product quality.

Sizing for Pipe Diameter and Output Needs

Barrel sizing directly affects the maximum pipe diameter and output rate in PVC extrusion. Larger barrel diameters allow for larger screws, which can produce bigger pipes and higher throughput. The length-to-diameter ratio (L/D) and screw design also influence melting and mixing efficiency. When wear increases the clearance between the screw and barrel, output drops and product quality suffers. For example, a small increase in clearance can reduce output by up to 60 pounds per hour in a 4.5-inch extruder. Regular maintenance and proper sizing help maintain consistent performance and maximize output for any PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel application.

Performance and Maintenance of PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel

Output Quality and Consistency

Consistent output quality in PVC pipe production depends on several important factors.

1. Manufacturers use high-quality raw materials from trusted suppliers to ensure uniformity in PVC resin and additives.
2. They select extruder designs that match the application, considering screw length-to-diameter ratio, screw profile, barrel heating zones, and die design.
3. Operators maintain proper conditions by standardizing screw speed, barrel temperature, and material feed rate.
4. Regular maintenance, including cleaning and part replacement, keeps performance steady.
5. Well-trained operators monitor production and adjust settings to prevent defects.

Variations in screw design, such as compression ratio and mixing pins, directly affect the fusion and viscosity of the PVC melt. Proper temperature control and screw speed adjustments help maintain uniform wall thickness and reduce defects.

Energy Efficiency Considerations

Conical twin screw extruders deliver high torque at lower screw speeds, which improves feeding stability and reduces energy use. The conical design gradually increases pressure and mixing, leading to better melt quality and lower energy consumption. Compared to single screw extruders, conical twin screw models can use about 50% less energy in PVC pipe production.

Design features such as optimized screw geometry, advanced temperature control, and energy-saving motors further improve efficiency.

Ease of Cleaning and Maintenance

Easy maintenance increases operational uptime for PVC Pipe and Profile Designed for Extruders Conical Twin Screw Barrel.

• Equipment with simple, robust designs reduces the need for frequent servicing.
• Regular cleaning after each run prevents contamination and buildup.
• Operators inspect the barrel for wear or corrosion and replace liners as needed.
• Proper alignment and lubrication keep the system running smoothly.
• Quick maintenance procedures and intuitive controls help minimize downtime and keep production steady.

Tip: Preventive cleaning and regular inspections help avoid costly repairs and ensure reliable operation.

Selecting the right conical twin screw barrel for PVC pipe production depends on several critical factors:

Industry experts recommend focusing on these areas to achieve high product quality, longer machine life, and efficient operation. Prioritizing these choices leads to successful PVC pipe manufacturing.

FAQ

What makes conical twin screw barrels suitable for PVC pipe production?

Conical twin screw barrels provide strong mixing and precise temperature control. They help create uniform PVC pipes with fewer defects and longer equipment life.

How often should operators inspect the screw and barrel for wear?

Operators should inspect the screw and barrel after every production cycle. Regular checks help prevent unexpected breakdowns and maintain consistent product quality.

Can JT MACHINE customize conical twin screw barrels for specific applications?

JT MACHINE offers custom design services. They analyze production needs and create barrels that fit unique pipe sizes, materials, and output requirements.
