Manufacturers achieve immediate production efficiency with the Bottle Blow molding screw barrel.
- Users report up to 75% lower maintenance costs, 50% energy savings, and reduced waste with advanced machines.
High-efficiency molds in Pc Blowing Bottle Machine and Preform Bottle Blowing Machine ensure stable output, while Plastic Water Bottle Blowing Machine automation boosts uptime.
Enhanced Efficiency and Quality with Bottle Blow Molding Screw Barrel
Faster Cycle Times
Manufacturers rely on advanced Bottle Blow molding screw barrel designs to achieve rapid production cycles. Longer screw barrels with higher length-to-diameter ratios allow plastic to melt and mix more thoroughly. This process improves parison quality and reduces the chance of defects. Specialized screw geometries, such as grooved feed screws and barrier mixing sections, help resin melt and mix evenly. Operators benefit from integrated sensors that monitor melt pressure and temperature, enabling quick adjustments for optimal conditions. Durable materials and coatings, including nitrided steel and bimetallic alloys, extend the lifespan of the screw barrel and minimize downtime.
- Key factors that contribute to faster cycle times:
- Uniform melting and mixing
- Enhanced pressure and melt homogeneity
- Real-time process monitoring
- Improved cooling efficiency
- Accurate bottle sizing
Tip: Upgrading to advanced screw barrel technology can help manufacturers produce more bottles in less time, increasing overall output.
Consistent Material Flow
Consistent material flow is essential for producing high-quality bottles. Advanced Bottle Blow molding screw barrel designs feature longer barrels and higher compression ratios, which create uniform parisons. This uniformity leads to bottles with better clarity and strength. Modern systems, such as the Sidel Matrix Intelliblower™, use self-regulating blowing processes to maintain even material distribution. Continuous process control reduces defects and ensures each bottle meets quality standards.
- Benefits of consistent material flow:
- Improved bottle appearance and durability
- Reduced waste through optimized material allocation
- Enhanced performance with recycled polymers
- Predictive maintenance alerts for out-of-tolerance production
A simulation study showed that controlling cooling time and temperature during the pre-blow phase leads to uniform wall thickness and optimal bottle quality. Stable material flow supports lightweighting efforts and minimizes manual adjustments.
Improved Melt Homogeneity

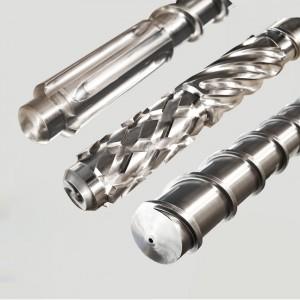

Advanced screw barrel technologies focus on achieving superior melt homogeneity. Helically grooved feeding zones and barrier screws provide high pressure and stable conveying, even at high speeds. These features help maintain lower melt temperatures and prevent thermal degradation. Increasing screw pitch along the feed opening prevents granule recirculation, ensuring even melting. Optimized screw geometry, including compression ratio and flight depth, enhances melting efficiency and product consistency.
Manufacturers tailor screw and barrel designs to specific resins and applications. This customization ensures uniform melt, reduces scrap, and improves part quality. Barrel design also plays a crucial role in maintaining temperature control and proper material flow, preventing uneven melting and material degradation.
Note: Improved melt homogeneity leads to bottles with consistent strength, appearance, and performance.
Reduced Defects and Waste
Minimizing defects and waste is a top priority in bottle blow molding operations. Advanced Bottle Blow molding screw barrel designs promote melt uniformity, which prevents common issues such as weak weld lines, warping, marbling, resin degradation, and black specks. Material-specific screws reduce shear on the polymer, lowering melt temperatures and producing a more uniform melt.
Operators benefit from tailored screws that handle specific resin and regrind ratios, improving output and reducing cycle times. The following table highlights common causes of defects and preventive measures:
| Cause | Impact on Defects and Waste | Preventive Measures |
|---|---|---|
| Abrasion from additives | Excessive wear leading to contamination and defects | Use compatible, non-abrasive materials |
| Thermal stress | Warping or cracking causing inconsistent melt and defects | Optimize temperature control and machine settings |
| Operational errors | Residue buildup and uneven processing causing defects | Train operators on proper usage and cleaning |
| Material incompatibility | Degradation and contamination increasing waste | Select high-quality, compatible materials |
Manufacturers who invest in advanced screw barrel technology experience fewer defects, less waste, and more reliable production.
Durability, Cost Savings, and Smart Integration in Bottle Blow Molding Screw Barrel
Wear-Resistant Alloys and Coatings
Manufacturers choose wear-resistant alloys and advanced coatings to extend the life of the Bottle Blow molding screw barrel. The screw barrels use high-quality steel, such as 38CrMoALA, which undergoes conditioning, surface nitriding, and hard alloy coating. These processes create a tough surface that resists abrasion and corrosion. Polishing ensures high precision and smooth operation.
- Bimetallic alloys and heat-treated steels increase hardness and durability.
- Nitriding and hard chrome plating protect against wear from abrasive plastics.
- Coatings like Colmonoy and tungsten alloys shield the barrel from damage during high-stress processing.
- These features maintain consistent melting and mixing, which supports product quality and equipment longevity.
- Barrel material and treatment choices match the type of plastic and processing environment, ensuring optimal protection.
Operators see fewer breakdowns and longer intervals between replacements. The Bottle Blow molding screw barrel delivers reliable performance, even when processing challenging materials.
Lower Maintenance and Downtime
Advanced screw barrels reduce maintenance needs and minimize downtime. Manufacturers benefit from scheduled lubrication and timely component replacement. Upgrading system parts improves efficiency and lowers the frequency of repairs.
| Maintenance Strategy | Impact on Cost Savings and Downtime |
|---|---|
| Scheduled Lubrication | Prevents breakdowns, maintaining machine reliability and reducing unexpected downtime. |
| Component Replacement | Timely replacement of screws and barrels prevents failures; worn screw replacement can boost throughput by up to 15%. |
| System Upgrades | Modernizing components improves efficiency and reduces maintenance frequency and downtime. |
Regular inspection and preventive maintenance keep machines running smoothly. Companies reserve a portion of the machine’s value for annual maintenance, which helps control costs. Lost production from downtime can cost thousands of dollars per hour, so fast technical support and maintenance agreements are essential.
- Advanced bimetal screw barrels last longer and require fewer repairs.
- Enhanced heat management allows machines to run faster without sacrificing quality.
- Improved precision reduces material waste and optimizes resource use.
These factors help bottle manufacturers save money and increase profitability.
Versatility with Modern and Recycled Polymers
The Bottle Blow molding screw barrel adapts to a wide range of polymers, including recycled materials. Adjustable dams and mixing screws allow operators to tailor the melting and mixing process for different resin types and regrind percentages. This flexibility helps maintain lower melt temperatures, which saves energy and preserves polymer properties.
Processors can fine-tune shear and compression ratios to suit various materials. These adjustments improve melt homogeneity and stability, reducing defects like weak spots or blowouts.
- Tri-layer extrusion heads enable the use of recycled PCR materials and bioresins.
- Multi-layer designs keep recycled and virgin materials separate, enhancing bottle quality and recyclability.
- Lightweight bottle designs and new machine platforms reduce energy consumption by about 25%.
Twin screw extruders efficiently reprocess recycled plastics, blend materials, and restore mechanical properties. These features support sustainability and lower raw material costs.
Real-Time Monitoring and Predictive Maintenance
Smart integration features transform bottle blow molding operations. Automation and IoT-enabled systems track performance, detect faults, and schedule maintenance before failures occur.
| Feature | Benefit | Impact |
|---|---|---|
| Predictive Maintenance | Provides alerts before failures occur | Leads to reduced downtime and lower maintenance costs |
Predictive alerts use historical data to forecast maintenance needs, enabling proactive interventions. Real-time notifications help operators respond quickly to potential issues. Preventive maintenance based on sensor data identifies wear patterns and prevents unexpected breakdowns.
- Automation and smart factory integration improve precision and reduce operational costs.
- Energy-efficient motors and electric systems lower electricity consumption.
- Quick mold switching and customization increase production capacity and flexibility.
- Compatibility with recyclable and biodegradable materials supports sustainability goals.
Monitoring barrel temperature and screw speed with advanced software optimizes energy use, reduces waste, and improves product consistency. These smart features contribute to long-term financial savings and support sustainable production.
Manufacturers gain measurable advantages with advanced screw barrel technology. Efficiency, quality, and durability improve production outcomes. The table below shows how precision design and smart features deliver a competitive edge in 2025.
| Aspect | Benefit |
|---|---|
| Process Control | Consistent product quality |
| Material Flexibility | Handles advanced polymers |
| Energy Efficiency | Reduces operational costs |
Industry experts recommend upgrading to future-ready systems for long-term success.
- Growing demand for energy-efficient barrels and smart automation shapes industry trends.
- Quick mold changes and predictive maintenance boost uptime and profitability.
FAQ
What materials work best with advanced Bottle Blow Molding Screw Barrels?
Operators use these screw barrels with PET, HDPE, PP, and recycled polymers. The design supports both virgin and recycled materials for flexible production.
How often should manufacturers perform maintenance on screw barrels?
Manufacturers should inspect and clean screw barrels every 1,000 operating hours. Regular maintenance prevents residue buildup and ensures consistent product quality.
Can advanced screw barrels help reduce energy costs?
Yes. Advanced screw barrels improve melting efficiency and temperature control. These features lower energy consumption and support sustainable manufacturing goals.
