Simple Steps to Address Common Extruder Screw Barrel Failures

Extruder screw barrel failures often appear as feeding issues, overheating, screw wear, mixing problems, barrel contamination, or strange noises.
1. Screw element wear reduces feeding capacity.
2. Overload from excess feeding or foreign objects can cause damage.
3. Heater faults and misalignment lead to breakdowns.

Quick troubleshooting and regular checks help the professional extruder alloy screw barrel perform better, reduce downtime, and keep product quality high. Alloy Extruder Screw Barrel Factories and the Alloy Extruder Screw Barrel Factory recommend routine inspections for every Alloy Screw Barrel.

Common Extruder Screw Barrel Failures

Feeding Issues

Feeding issues often disrupt the extrusion process. Operators may notice the extruder stops feeding properly, struggles to push material, or produces grinding and scraping noises. These symptoms usually point to blockages, material bridging, or uneven material flow. Abrasive fillers like glass fibers or calcium carbonate can wedge in the feed section, causing side forces that push the screw into the barrel wall.

Overheating

Overheating remains a frequent problem in extruder screw barrels. Excessive heat, uneven cylinder heating, and poor insulation lead to thermal degradation. When the barrel heats unevenly, it expands and warps, which can damage both the screw and the barrel. Consistent temperature control and proper cooling systems help prevent these issues.

Screw Wear and Damage

Screw wear shows up as reduced throughput, increased energy use, and the need for more additives. Operators may smell burnt material or see material backing up in the feed zones. Wear often occurs in high-pressure and high-temperature areas, especially when processing abrasive or corrosive materials. Poor alignment or mechanical side forces can worsen the damage.

Material Mixing Problems

Mixing problems cause poorly blended materials and inconsistent product quality. Incomplete filling of the extruder, measured by low back pressure, leads to unstable extrusion and pressure deviations. Poor mixing can also result in polymer chain breakage, which affects the final product’s strength and appearance.

Barrel Contamination

Barrel contamination comes from residual resins, color deposits, carbonized materials, and hard particles. These contaminants cause abrasion, adhesion, and corrosion, leading to increased wear and frequent machine downtime. Regular purging with proper compounds helps prevent buildup and maintains machine efficiency.

Unusual Noises or Vibrations

Unusual noises and vibrations signal misalignment, worn bearings, or severe internal wear. Early detection helps prevent major breakdowns and costly repairs.

Why These Failures Happen

Material-Related Causes

Material selection plays a critical role in the durability of extruder screw barrels. Certain steel grades, especially those with high carbon content, can develop weld defects like pinholes and pores. These defects act as stress points and can lead to cracks during operation. Steels with poor resistance to high temperatures and oxidation also fail more quickly under the thermal cycles of extrusion. Metallurgical studies show that cracks often start at these weak spots and grow due to repeated heating and cooling.

Thermal fatigue and improper cooling systems further increase the risk of failure.

Mechanical Wear and Tear

Mechanical wear happens as the screw rotates inside the barrel. Friction slowly reduces the screw’s diameter and enlarges the barrel’s inner surface. This increased clearance allows material to leak, which lowers production efficiency and increases the time material stays inside. Longer residence times can cause plastics to break down, releasing gases that speed up corrosion. Abrasive fillers, metal particles, and high speeds also increase wear and can even break the screw.

Operating Conditions

Certain operating conditions make failures more likely. Improper temperature control can cause overheating or uneven heating, which damages both the screw and barrel. Processing abrasive or contaminated materials, poor plasticization, and long-term use all increase wear. Lubrication problems and installation errors, such as misalignment or loose bolts, can lead to abnormal noise, vibration, and even screw breakage.

• Barrel clogging from impurities or poor mixing
• Temperature control failures
• Wear from long-term use and abrasive materials
• Lubrication and installation mistakes

Regular monitoring and correct setup help reduce these risks and extend equipment life.

Step-by-Step Solutions for Each Failure

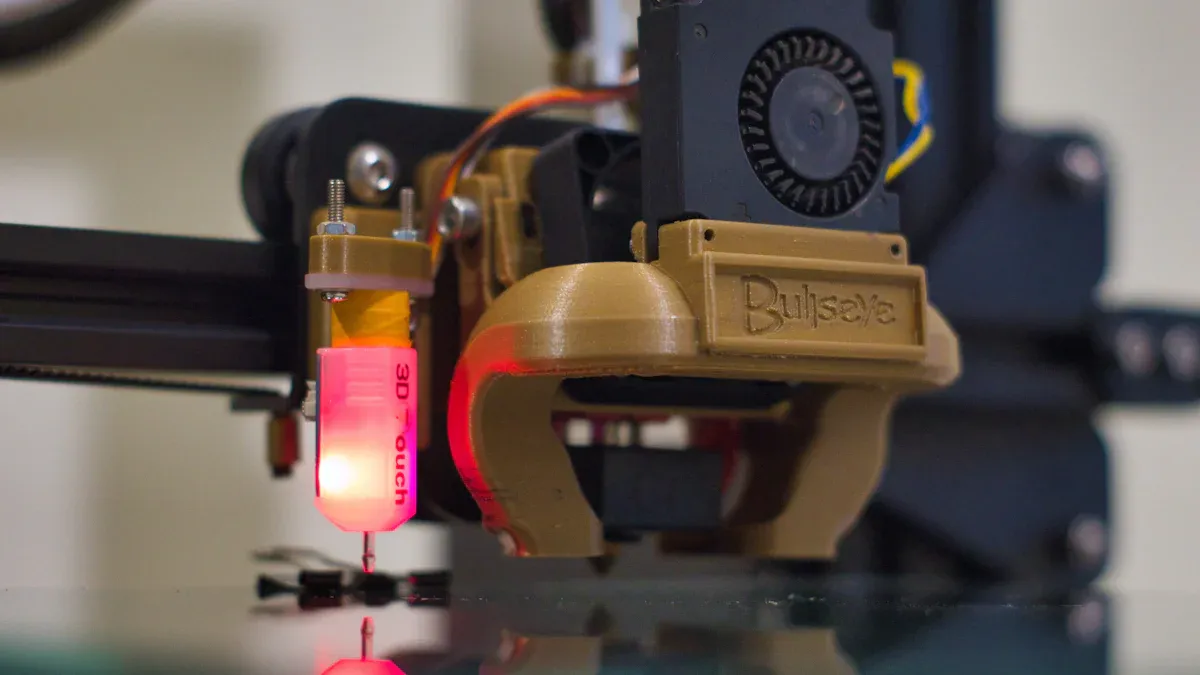

Fixing Feeding Issues

A systematic approach helps operators quickly identify and resolve feeding issues in extruder screw barrels. The following steps guide troubleshooting from simple checks to more technical inspections:

1. Ensure the filament or material spool unwinds freely without any obstruction.
2. Inspect the PTFE tube for signs of wear, snags, or improper positioning.
3. Check the hotend nozzle for clogs. Use cleaning methods such as cold pulls to remove blockages.
4. Examine the extruder gears for wear or buildup that could affect material grip.
5. Verify the quality of the filament or raw material and confirm correct settings.
6. Measure the filament diameter and adjust the extrusion multiplier if needed.
7. Increase the extruder temperature if the material does not flow smoothly.
8. Calibrate the extruder to ensure proper material flow.

Operators should also:

• Clean extruder components thoroughly after each production run to prevent buildup.
• Maintain drive system components, including gearbox oil, motor condition, belt tension, and bearing lubrication.
• Prepare materials before production by verifying specifications and cleaning feeding systems.
• Gradually increase feed rates and monitor pressure and temperature for stable extrusion.

Regular inspection and careful adjustment of feeding systems help maintain consistent material flow and prevent downtime.

Addressing Overheating

Overheating can damage both the screw and barrel, so operators must act quickly when signs appear. The following steps provide a clear path to diagnosing and correcting overheating:

1. Reduce the melt temperature if polymer degradation or overheating is detected.
2. Check thermocouple installation and ensure heater controls provide accurate readings.
3. Inspect the extruder screw for wear or damage and measure its dimensions.
4. Examine the extruder barrel for wear or damage and measure the internal diameter.
5. Check for contamination or foreign objects in the resin and material handling system.
6. Lower the barrel temperature if discoloration or burning indicates excessive heat.
7. Monitor and adjust barrel zone temperatures to prevent overheating.
8. Lower screw speed to reduce heat generation.
9. Modify screw elements to reduce shear intensity if necessary.
10. Implement external cooling systems for heat-sensitive materials.

Careful monitoring and adjustment of temperature controls protect equipment and ensure product quality.

Repairing or Replacing Worn Screws

Timely repair or replacement of worn screws restores optimal performance and prevents costly downtime. Industry best practices include:

• Use precision repair and rebuild services to restore screws to original specifications.
• Replace screws when wear exceeds recommended limits, as even minimal wear can reduce efficiency by over 50%.
• Consider cost-effective repair options, which can save up to 40% compared to new screws.
• Apply advanced materials such as tungsten carbide hard-surfacing or industrial hard chrome to enhance wear resistance.
• Use repair techniques like re-chroming, nitriding, or hardfacing to extend screw life.
• Maintain flight widths during rebuilds to allow for multiple repairs.
• Monitor gearbox and thrust units for proper lubrication and stable temperatures.
• Replace lube oil and filters every 6–12 months and inspect gears for wear.
• Perform daily inspections of v-belts and monitor motor load for signs of wear.
• Schedule planned downtime for maintenance every few months, depending on operation conditions.
• Replace worn parts such as choke inserts and barrel liners proactively.

Operator training and regular professional inspections ensure early detection of wear and help avoid catastrophic failures.

Improving Material Mixing

Consistent material mixing ensures high-quality products and stable extrusion. Operators can improve mixing by following these steps:

1. Optimize screw design by combining the main extruder screw with a long-pitch screw element downstream of the filler. This maintains melt flow and maximizes free volume for filler entry.
2. Ensure venting capability near the filler to allow air to escape without losing material.
3. Minimize feeder drop height to prevent fluffing and maintain bulk density.
4. Use appropriate feeder agitation to avoid aerating the material.
5. Vent and ground all hoppers and chutes to prevent static electricity buildup and caking.
6. Employ compressed air injectors or hopper vibrators to break up lumps.
7. Wash and purge the extruder often using chemical and mechanical abrasive cleaners. Vary screw speed during purging for better cleaning.
8. Plan efficient production changeovers by running products in order of decreasing cleanliness and developing written cleaning procedures.
9. Follow proper warm-up and cool-down procedures to avoid polymer baking and carbonization.
10. Monitor key process indicators such as specific throughput and energy use to optimize mixing performance.

Regular cleaning and process monitoring help maintain consistent mixing and prevent defects.

Cleaning Barrel Contamination

Effective cleaning procedures remove barrel contamination and extend equipment life. Operators should:

• Use mechanical cleaning with brushes and cloths to remove loose residues.
• Apply chemical cleaning with purging compounds designed for the specific plastic material and extrusion system.
• Perform controlled heat treatment for extreme contamination to loosen stubborn buildup.
• Inspect and clean after each material change or when contamination is detected.
• Maintain a preventive maintenance schedule that includes cleaning of the screw, barrel, hotrunner, and cooling systems.
• Seal the machine during shutdown to prevent contamination and degradation.
• Use specialized screw cleaning agents instead of raw plastic materials.
• Follow machine settings recommended by cleaning agent suppliers, such as safe screw speed and back pressure.
• For stubborn contamination, increase temperature during purging or pre-purge with HDPE or PP.

Regular and thorough cleaning minimizes downtime, reduces waste, and protects equipment from long-term damage.

Resolving Noises and Vibrations

Unusual noises or vibrations often signal deeper mechanical issues. Operators can resolve these problems by:

• Checking for misalignment between the screw and barrel.
• Inspecting bearings and couplings for wear or damage.
• Listening for abnormal sounds during operation and identifying their source.
• Monitoring for deep grooving or mechanical damage inside the barrel.
• Ensuring all fasteners are properly tightened but not over-tightened.
• Lubricating moving parts according to manufacturer guidelines.
• Scheduling periodic professional inspections to detect early signs of wear.
• Replacing worn or damaged parts such as bearings, couplings, and seals promptly.

Early detection and prompt action prevent major breakdowns and keep the extrusion process running smoothly.

Preventative Maintenance and Best Practices

Regular Inspection Routines

Routine inspections form the backbone of reliable extruder operation. Operators should inspect the screw and barrel daily for visible wear or residue. Cleaning with a lint-free cloth and suitable agent remains mandatory each day. Performance testing and adjustments help maintain output quality. Annually, teams should measure the screw’s outer diameter and the barrel’s inner diameter to monitor wear. Checking barrel heater bolts for tightness and proper contact every 12 months ensures consistent heating. Many manufacturers provide a quarterly performance checklist to help teams follow OEM standards.

Proper Cleaning Procedures

Effective cleaning prevents contamination and extends equipment life. Operators should purge the extruder during every color or material change. During long runs, periodic purging avoids carbon deposits and layering. The cleaning process includes reducing screw speed, setting barrel zones to about 400°F, and removing the die if needed. Cleaning the screw with brass tools and polishing with copper gauze removes residue safely. Using stearic acid flakes helps lift stubborn deposits. After cleaning, a light oil spray or chrome plating protects the screw from rust. Never use steel tools or acetylene torches, as these can damage the screw’s surface.

Lubrication and Cooling Tips

Proper lubrication and cooling keep the extruder running smoothly. Operators should use lubricants designed for high-temperature and high-pressure conditions. Regular checks and adjustments to the lubrication system ensure all moving parts receive adequate protection. Monitoring lubricant levels and replenishing as needed prevents dry running. Advanced temperature control systems, such as thermocouples and PID controllers, help maintain precise heating. Using distilled water in cooling tanks prevents scaling and maintains effective cooling. Teams should monitor water levels and replace water if scaling appears.

Consistent lubrication and cooling routines reduce friction, prevent overheating, and extend the lifespan of both screw and barrel.

Operator Training

Well-trained operators make a significant difference in equipment reliability. Training should begin at the manufacturer’s site and continue during installation and startup. Regular refresher sessions during audits help reinforce best practices. Operators learn to recognize early warning signs, such as unusual noises or reduced efficiency. Training covers proper startup and shutdown procedures, cleaning methods, and the importance of routine inspections. Emphasizing alignment and timing checks helps avoid mechanical stress and premature wear. Teams that invest in ongoing education see fewer failures and longer equipment life.

Professional Extruder Alloy Screw Barrel

Advantages of Alloy Screw Barrels

A professional extruder alloy screw barrel offers several advantages over standard models. The core uses high-strength alloy steel, while the outer layer features a bimetallic composite. This design improves durability and wear resistance. The outer layer, often made with tungsten carbide or high-speed tool steel, protects against abrasion and corrosion. Operators notice longer service life and less downtime.

A professional extruder alloy screw barrel also allows for extensive customization. This flexibility supports different processing needs and materials.

Applications in Challenging Processing Environments

Factories use professional extruder alloy screw barrels in tough environments. These barrels handle abrasive fillers like glass fiber and corrosive plastics such as fluorocarbons. The bimetallic construction, with carbides embedded in nickel or chromium matrices, resists both wear and chemical attack. Operators can run machines at higher speeds and pressures without overheating. The barrels maintain tight clearances, which keeps product quality high. Many industries, including plastics, chemicals, and food processing, rely on these barrels for their durability and performance.

Maintenance and Repair of Alloy Screw Barrels

Proper care extends the life of a professional extruder alloy screw barrel. Operators should select wear-resistant materials and apply surface treatments like nitriding or chrome plating. Regular cleaning with commercial purging compounds removes residue and prevents buildup. Inspections every six months for reinforced resins and yearly for unfilled resins help detect wear early. When needed, repair options include reboring, re-casting with a new alloy layer, or replacing worn sections with liners. Preventive maintenance, such as lubrication and process optimization, reduces repair needs and maximizes service life.

Regular checks and proactive troubleshooting keep extruder screw barrels running smoothly. Operators who clean, inspect, and lubricate equipment prevent downtime and extend service life. When material leaks, product quality drops, or unusual noises occur, expert technicians should inspect the professional extruder alloy screw barrel to restore peak performance.

FAQ

What signs show an extruder screw barrel needs maintenance?

Operators may see reduced output, hear unusual noises, or notice inconsistent product quality. Regular checks help spot these issues early.

How often should operators clean the screw barrel?

Most factories recommend cleaning after every material change. For long runs, operators should clean at least once per week.

Why choose an alloy screw barrel for tough materials?

Alloy screw barrels resist wear and corrosion. They last longer when processing abrasive or corrosive plastics.

Many industries rely on them for high performance.
